DX-800 Portable Full-Hydraulic Drilling Rig

Lightweight and Advanced Structure

 Modular lightweight design, the heaviest module is less than 180kg,can be manually transported;

 Mast type drilling frame structure, no need for drilling tower, can be drilled at any angle from 45° to 90°;

 Top-driven power head, 1.83m long stroke guide rail, cylinder propulsion, good guidance and orientation;

 Small footprint, no foundation work required, environmentally friendly.

Fully Hydraulic Drive

  Strong operability, hydraulic automatic release, paired with Italian brand DNP quick connector, long service life;

  Infinite speed regulation,stable drilling process, and low vibration;

  Real-time control of the situation in the hole, pressure-limited protection,easy maintenance.

Thin-walled Diamond Wire-Line-Core Drilling Technology

 High drilling speed, high utilization of pure drilling time, high core take rate, high adoption rate of rock cores; low labor intensity for workers and low costs；

  Rock and cores of good quality, clear structure, good integrity, and high purity.

Upgraded Add-ons: Crawler + Platform + Remote Control

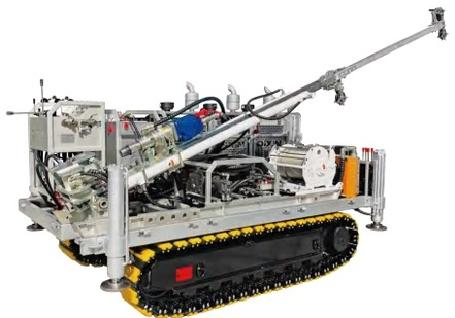

Tracked Remote-Controlled Travel Device

 No manual handling required; it can move directly on tracks, facilitating transportation and movement.

 Dual-speed travel, enabling long-distance remote control operation

 Rubber tracks & steel tracks are interchangeable.

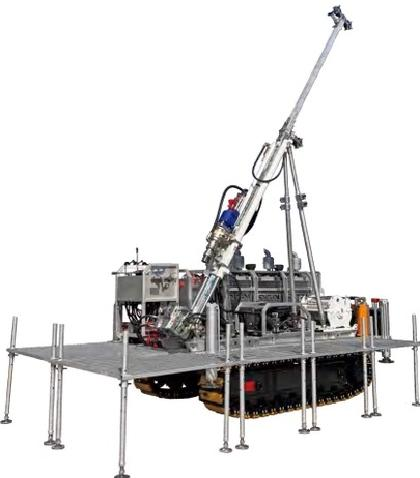

Detachable Platform Design

• The platform can be assembled or disassembled according to work requirements, which effectively reduces the working intensity of workers.

• The bottom of the platform outriggers adopts a universal joint design, which can adapt to various road conditions and improve the stability and safety of the platform.
